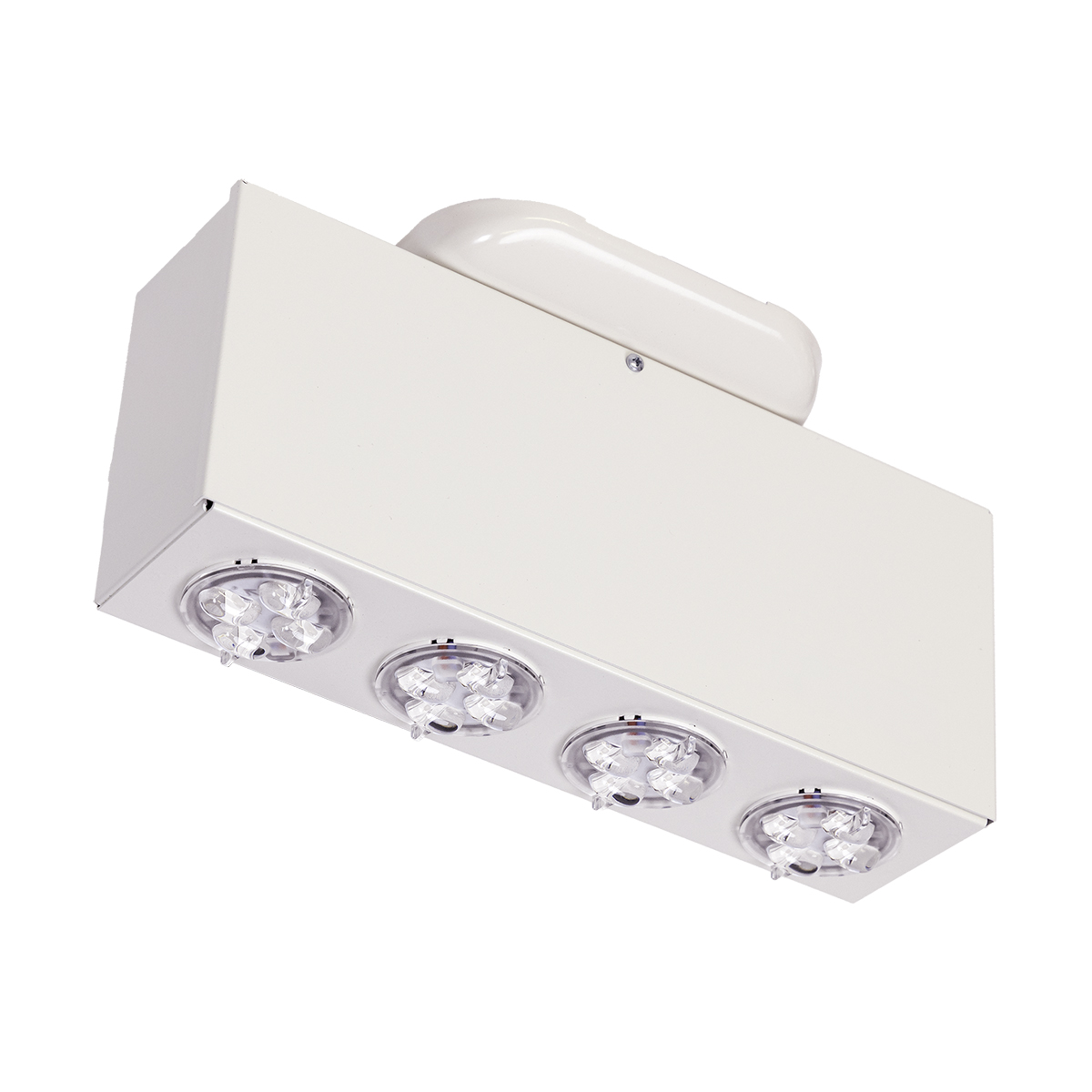

RPHR - Egress Luminaire A1


Photometric Data
	RPHR - Egress Luminaire A1
Typical coverage/spacing are based on a 6' wide path and 40-50-20 reflectances.

Lamp/Luminaire Configuration	IES FILES	Lamp Part #	BULB SPECIFICATION	Isolines PFD Cad Feet Cad inches	Optimal Coverage (LS-ft)	Optimal Spacing (LM-ft)
	PHR02-A1-2W909	023628	12V 7W LED Lamp	PHR02-A1-2W90.pdf PHR02-A1-2W90 in.zip PHR02-A1-2W90 ft.zip	59 (H=30ft)	59 (H=30ft)
	PHR02-A1-2W180	023628	12V 7W LED Lamp	PHR02-A1-2W180.pdf PHR02-A1-2W180 in.zip PHR02-A1-2W180 ft.zip	118 (H=30ft)	118 (H=30ft)
	PHR03-A1-3W90	023628	12V 7W LED Lamp	PHR03-A1-3W90.pdf PHR03-A1-3W90 in.zip PHR03-A1-3W90 ft.zip	59 (H=30ft)	59 (H=30ft)
	PHR03-A1-3W270	023628	12V 7W LED Lamp	PHR03-A1-3W270.pdf PHR03-A1-3W270 in.zip PHR03-A1-3W270 ft.zip	59 (H=30ft)	59 (H=30ft)
	PHR04-A1-2W90	023628	12V 7W LED Lamp	PHR04-A1-2W90.pdf PHR04-A1-2W90 in.zip PHR04-A1-2W90 ft.zip	91 (H=50ft)	96 (H=50ft)
	PHR04-A1-2W180	023628	12V 7W LED Lamp	PHR04-A1-2W180.pdf PHR04-A1-2W180 in.zip PHR04-A1-2W180 ft.zip	182 (H=50ft)	192 (H=40ft)
	PHR04-A1-4W360	023628	12V 7W LED Lamp	PHR04-A1-4W360.pdf PHR04-A1-4W360 in.zip PHR04-A1-4W360 ft.zip	96 (H=50ft)	96 (H=50ft)
